Ag/AgCI Silver chloride Reference Electrodes 2.5MM2*1500MM
The Ag/AgCl reference electrode is designed for used in seawater,soil and Concrete application or other multi purpose.Silver/Silver Chloride elements are manufactured using an advanced technique which results in a porous silver matrix being formed around a silver wire skeleton.

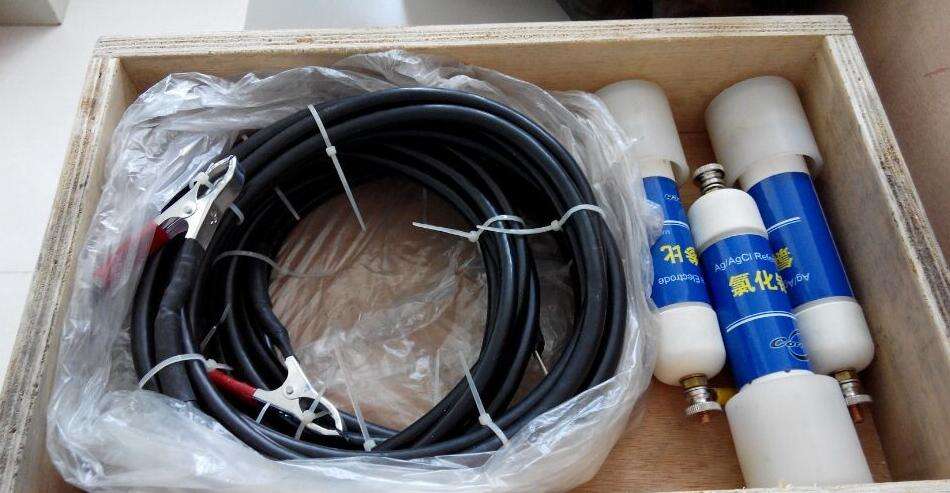

We could provide Portable Ag/AgCl Referenc Electrode and Permanent Ag/AgCl Reference Electrode.Customized is available.
| MATERIAL SPECIFICATIONS | |
| Materials Specification: | |
| Electrode Element | 99.9% pure silver |
| Electrode Media | Specially formulated Ag/AgCl matrix |
| Body | Sintered Porous material |
| Performance Details: | |
| Design life | min.30 years |
| Shelf life | 1 year minimum |
| Stability | ±5 mV at 5 microamps |
| Temperature Range | -10℃-65℃ |
| Potential* | -45±5 mV |
| Polarization Potential | ≤±5mV |
| Dimension Data: | |
| Electrode Body Diameter | 36mm |
| Electrode Body Length | 200mm |
| Nominal Weight | 180 grammes |
| Cable Tails: | |
| Standard Specification | 1X4mm2(12AWG)XLPE/PVC Cu Cable |
| Your Specify | Cable tail fitted to your requirements |
