PRODUCT DESCRIPTION
Zinc Alloy Hull Marine Anode are designed to provide corrosion prevention for projects like Marines, Ballast
Tanks, Ships, Sea Facility, Pipeline and so on.
FEATURES
* High current efficiency
* Easy installation
* Low maintenance cost
* Superior Performance
* Long service life

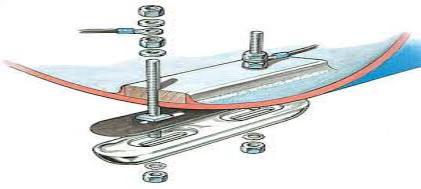

CONSTRUCTION
PHYSICAL PROPERTIES
| Type | Nominal DimensionH x W x L (mm) | Gross Weight(kg) | Core Distance(mm) | Type of installation |
| AIM-25 | 20X100X200 | 2.5 | 110 | Bolted-On |
| AIM-36 | 30X100X200 | 3.6 | 110 | Bolted-On |
| AIM-59 | 20X150X200 | 5.9 | 160 | Bolted-On |
| AIM-72 | 30X100X200 | 7.2 | 160 | Bolted-On |
| AIM-83 | 30X100X200 | 8.3 | 160 | Bolted-On |
| AIM-110 | 30X100X200 | 11.0 | 160 | Bolted-On |
*Customized Size Available
STANDARD
ASTM B122-1990, GB/T17731-2009
QUALITY CONTROL
Before the processing we would draw up the rules for production and make sure that the health inspection is
complete and then arrange a reasonable product plan. During the processing the quality management of production
materials is inspected strictly to ensure the normal operation. After the processing we will establish the standards of
packing according to the products’ characteristics.
